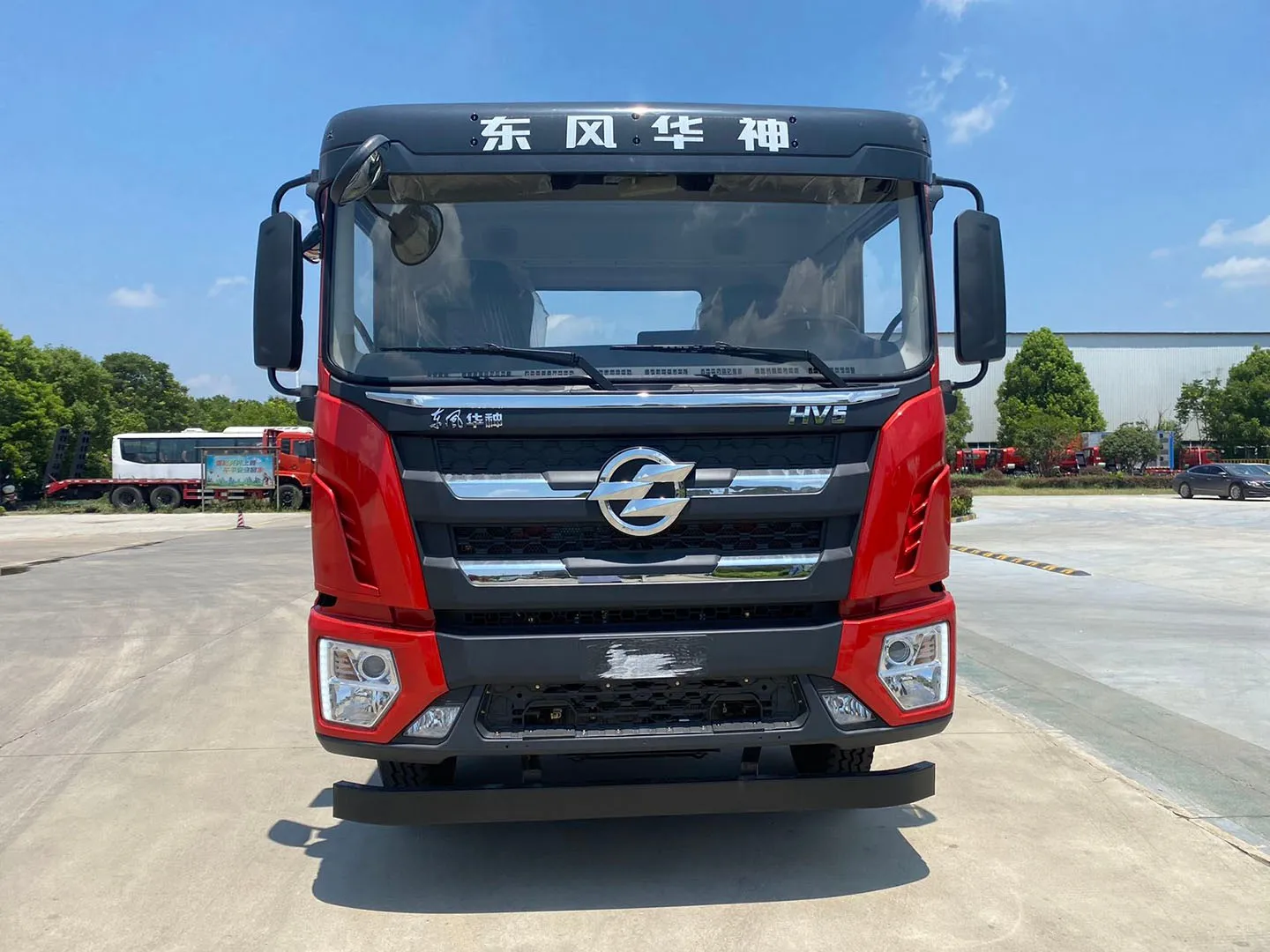

  • Dongfeng Huashen HV5
    Basic information
    Announcement model: DFD5256CCYL6D23
    Type: Saddle truck
    Drive type: 6X2
    Wheelbase: 1900+5300mm
    Box length level: 9.6 meters
    Engine: Yuchai YCS06270-60
    Gearbox: Fast 8JS105TA
    Rear axle ratio: 4.333
    Body length: 11.92 meters
    Body width: 2.55 meters
    Body height: 3.95 meters
    Front wheelbase: 1930/1930mm
    Rear wheelbase: 1860mm
    Vehicle weight: 9.05 tons
    Rated load: 15.755 tons
    Total mass: 25 tons
    Maximum speed: 88KM/h
    Place of origin: Shiyan, Hubei
    Tonnage level: Heavy-duty truck
    Approach angle: 19 degrees
    Departure angle: 9 degrees
    Front overhang/rear overhang: 1.41/3.36 meters
    Fuel type: Diesel
INQUIRY
Description

1. Hybrid system: Dongfeng Huashen HV5 is equipped with a hybrid system of Yuchai 240 horsepower engine plus dual motors. This system consists of Yuchai YCK05-240 horsepower engine and two motors. The motor rated power is 115 kilowatts and the peak power reaches 157 kilowatts.

2. ECVT continuously variable transmission: The hybrid system is matched with the ECVT continuously variable transmission, which is easy to operate and located at the lower right of the steering wheel. The gearbox adopts an integrated thermal management system to ensure the normal operation of the vehicle in a cold environment, and is equipped with hill start assist, efficient energy recovery system and creep mode.

3. Chassis stability and carrying capacity: HV5 uses a 3.6-ton front axle and a 9-ton rear axle, with a front 3 and rear 4+3 leaf spring suspension to ensure the stability and carrying capacity of the vehicle.

4. Battery configuration: In terms of battery configuration, Dongfeng Huashen HV5 is equipped with a new generation of CATL 513kWh lithium iron phosphate battery pack, which has a charging and replacement integrated, dual-gun fast charging function design, can achieve 5-minute fast battery replacement, and a full-charge range of up to 350km.

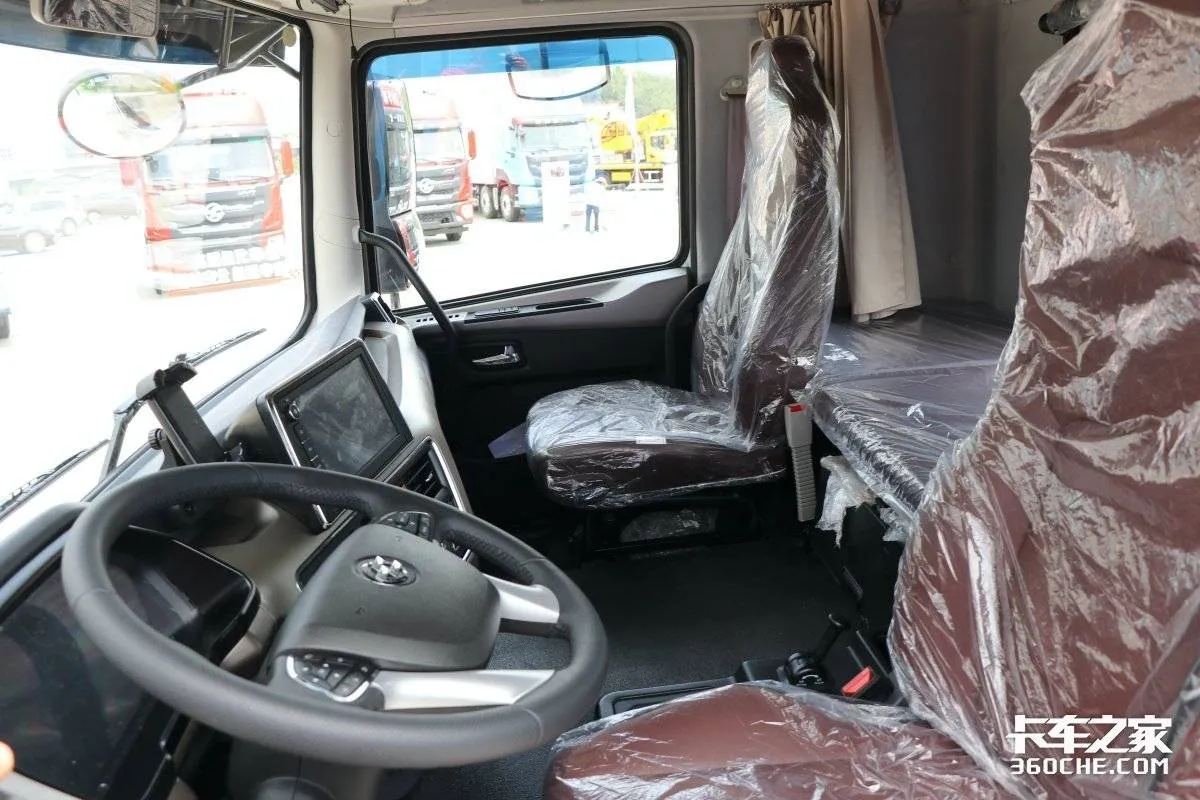

5. Cab configuration: The four-spoke multi-function steering wheel and hand-gear shift lever provide a convenient operating experience. The center console has a reasonable layout and is equipped with a suspended 10-inch center control screen with rich functions. Lane departure warning and fatigue driving monitoring probes are integrated under the front windshield to provide driving safety.

6. Power battery support: For refrigerated transportation, the vehicle is also equipped with a pure electric upper unit. The super-large power battery can support the continuous operation of the refrigeration machine, and can continue to cool for more than 10 hours at minus 18 degrees, realizing a true "mobile cold storage".
