Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
  • Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV)
    Basic information
    Announcement model DFD5186XLCLCHEV
    Drive type 4X2
    Wheelbase 5250mm
    Body length 9.425 meters
    Body width 2.6 meters
    Body heigh 4 meters
    Vehicle weight 9.3 tons
    Rated load 8.505 tons
    Total mass 18 tons
    Maximum speed 89km/h
    Place of origin Shiyan, Hubei
    Fuel type Hybrid
INQUIRY
Description

1. Dongfeng Huashen HV5 18T 6.9m plug-in hybrid refrigerated truck (DFD5186XLCLCHEV) is a special vehicle designed for cold chain logistics, with a vehicle size of 9425×2600×4000mm and a compartment size of 6900×2420×2600mm, providing sufficient refrigeration space.

2. Equipped with Yuchai YCK05240-60 engine and permanent magnet synchronous motor, equipped with E-CVT stepless transmission, it realizes 4X2 drive mode and adapts to various road conditions.

3. It adopts Ningde Times lithium iron phosphate battery with a battery capacity of 106.9 degrees, supports long-term cooling and parking air conditioning, and realizes the function of "mobile cold storage". The vehicle has a maximum speed of 89km/h and a fuel consumption of 15.8L/100km. It has three intelligent drive modes: pure electric drive, motor and engine combined output power, and engine direct drive, as well as auxiliary systems such as hill start, efficient energy recovery, and creep mode.

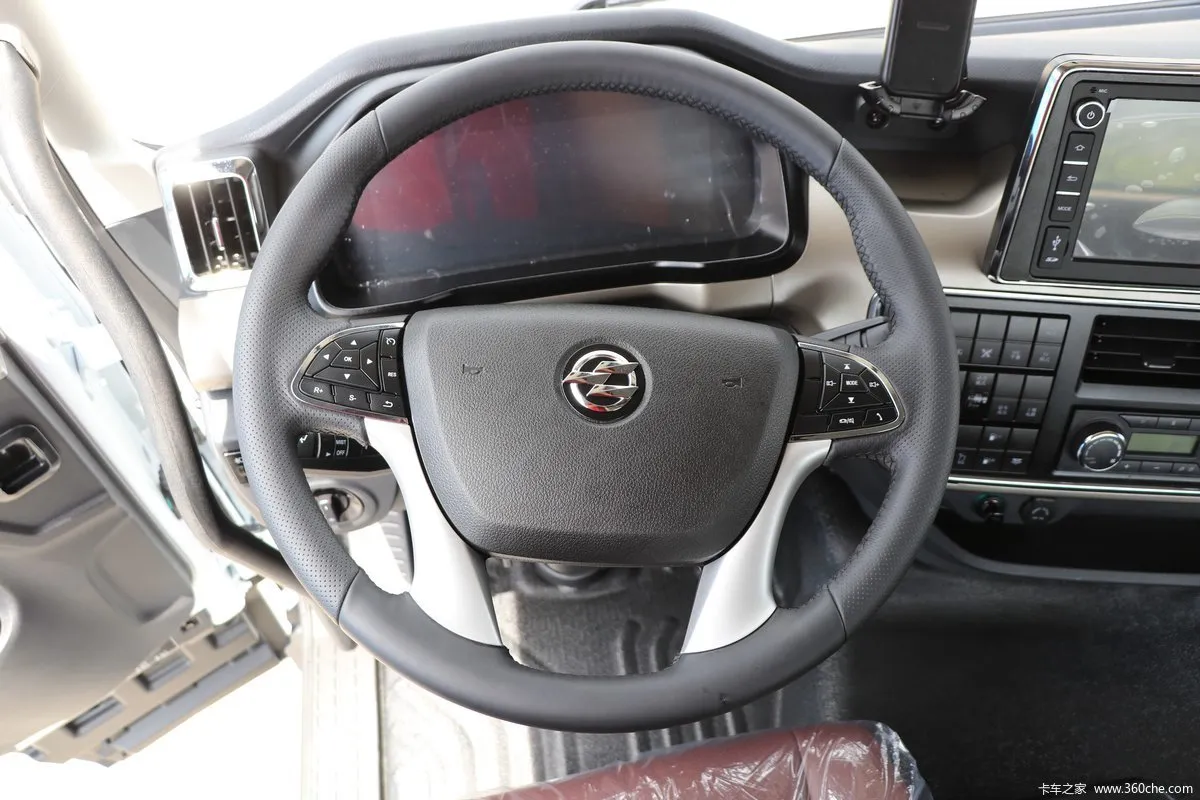

4. The interior is luxuriously equipped, including 8-way adjustable airbag seats, one-button start, 7-inch color LCD instrument, 10-inch central control screen, etc., providing the driver with a comfortable and convenient working environment.
